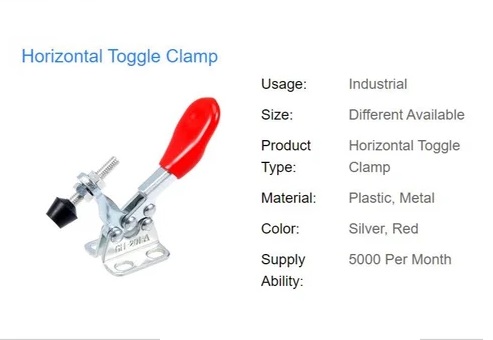

A horizontal toggle clamp is a clamping device where the handle is in a horizontal position when engaged, providing a downward holding force. It's designed for situations where more clearance above the clamp is needed or where the operator's hand needs to be away from the clamp during operation.

Key Features:

• Horizontal Handle:

  The handle is in a horizontal position when the clamp is engaged, allowing for more clearance above the clamp.

• Downward Holding Force:

  The clamp applies holding force in a downward direction, similar to vertical toggle clamps.

• Quick Release:

  Toggle clamps are known for their quick release mechanism, allowing for easy adjustment and component release.

• Variety of Designs:

  Horizontal toggle clamps can be found with fixed or adjustable arms, and in materials like steel and stainless steel, according to WDS Components.

• Applications:

  Used in various industries for securing components in place during assembly, welding, cutting, and other processes.

When to use a Horizontal Toggle Clamp:

• When you need more clearance above the clamp.
• When the operator's hand needs to be away from the clamp during operation.
• In applications where a front-mounted clamp is needed.
